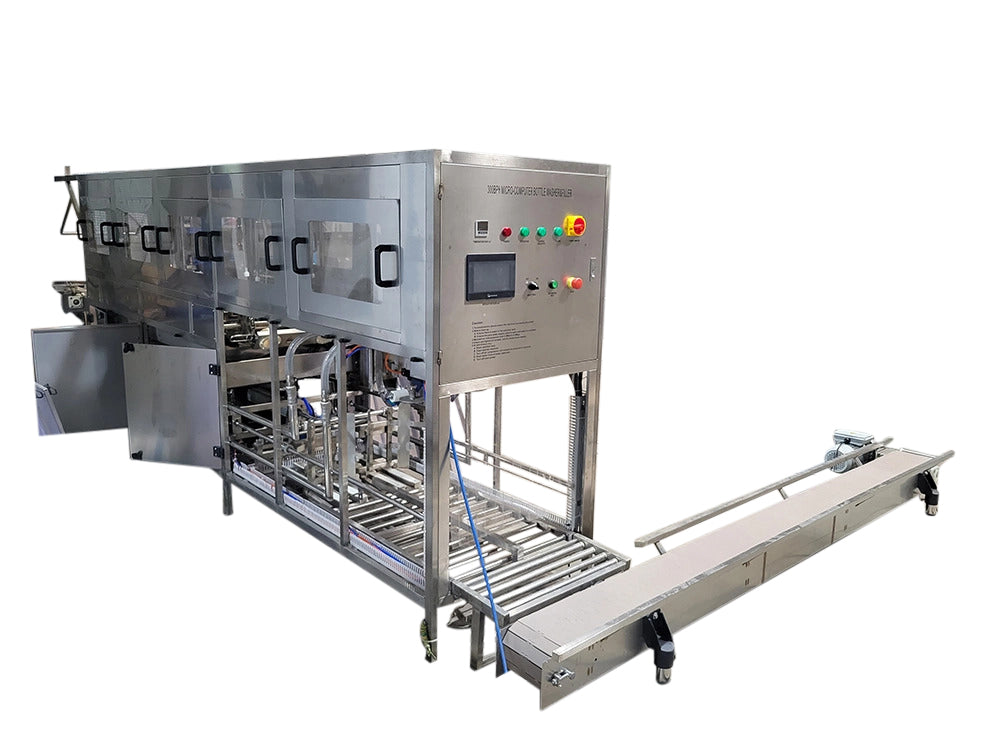

300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified. Shown with optional conveyor system.

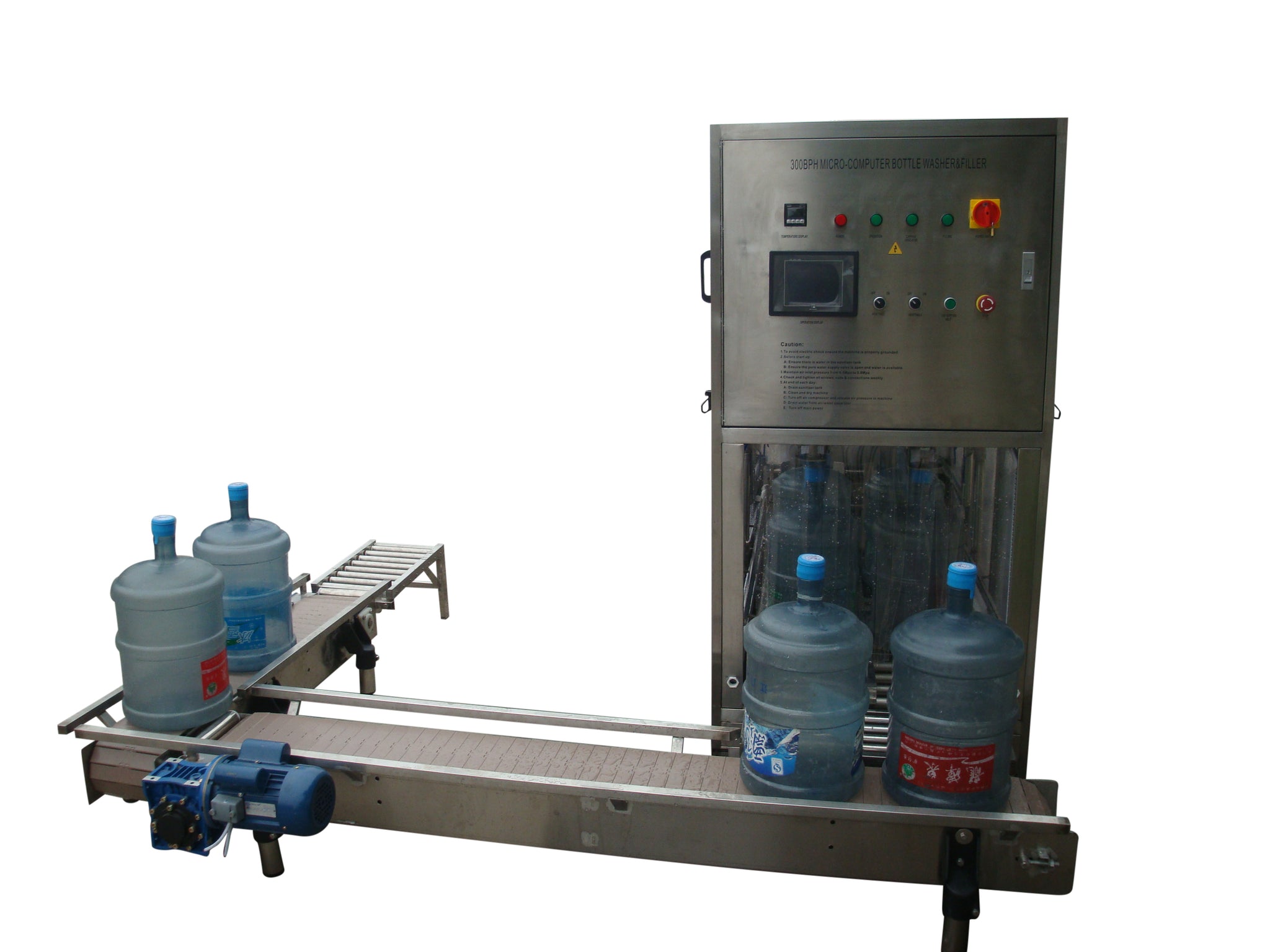

300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified. Shown with optional exit conveyor system.

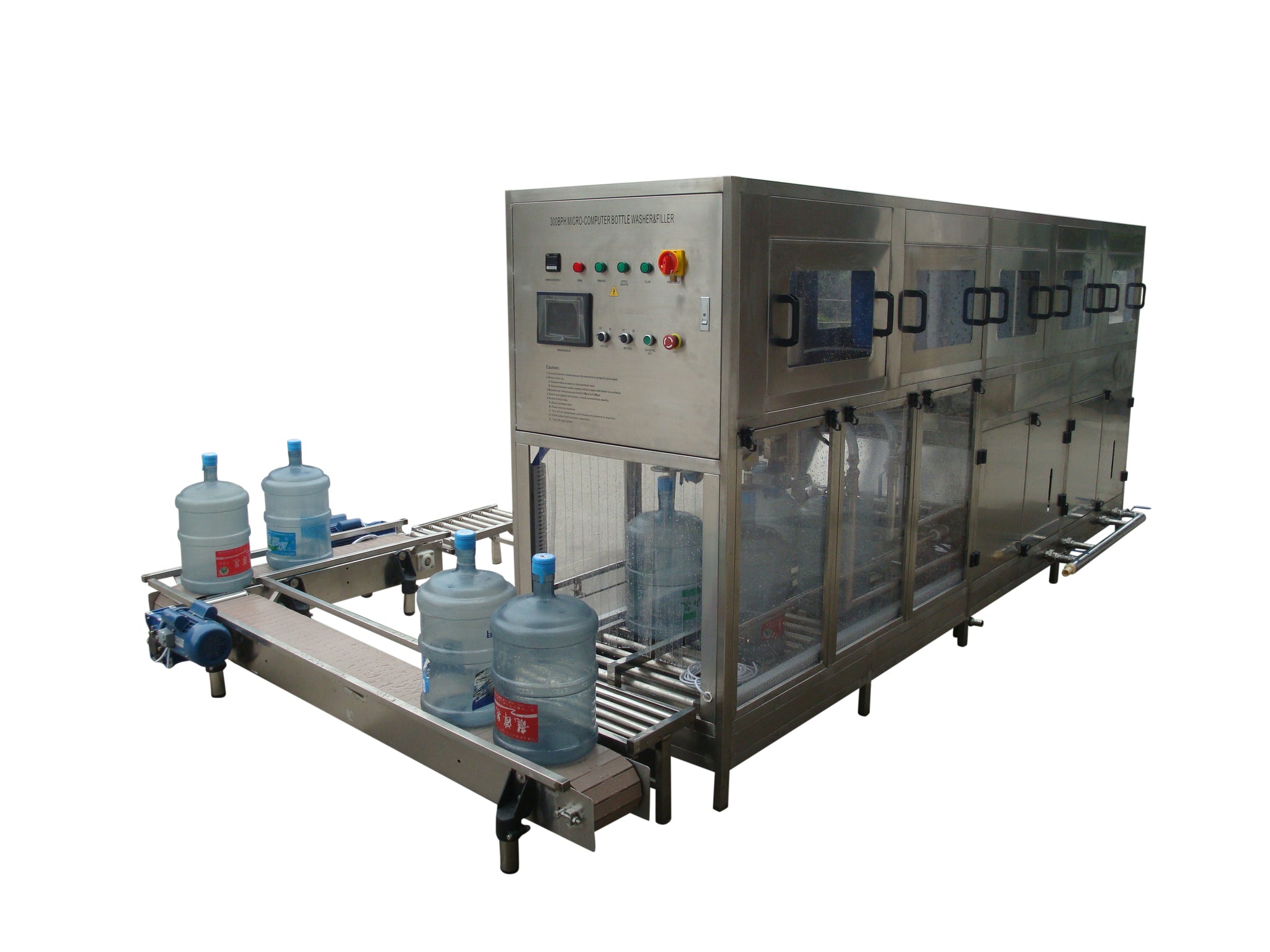

300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified. Shown with optional exit conveyor system.

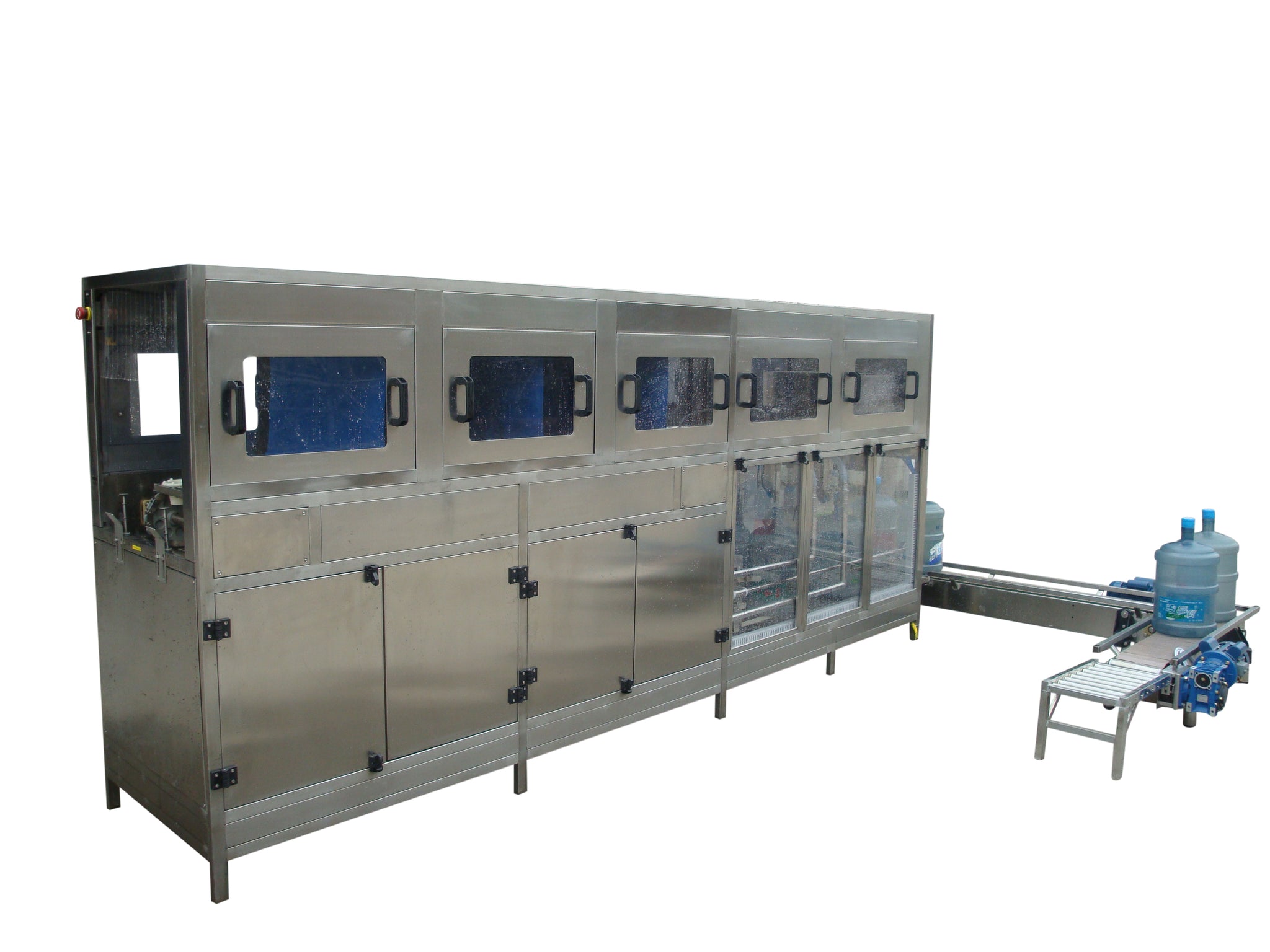

300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified. Shown with optional inlet conveyor and bottle loading system.
Touch screen control panel showing wash time screen on 300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified.
Touch screen control panel showing operation function screen on 300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified.
picture showing heavy duty 304SS industrial pumps in 300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified.
side view showing drain connection header on 300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified.
picture shows open service bay doors showing the SS pumps and the insulated hot water wash tank on the 300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified
picture shows open service bay doors showing the SS pumps and the sanitizing rinse tank on the 300 bottle per hour 18.9 liter wash, fill, cap system. 304SS construction, CSA Certified
Inside the control panel showing contactors, breakers, transformers, PLC control system and more on the WFC bottling systems. Every unit is CSA approved.

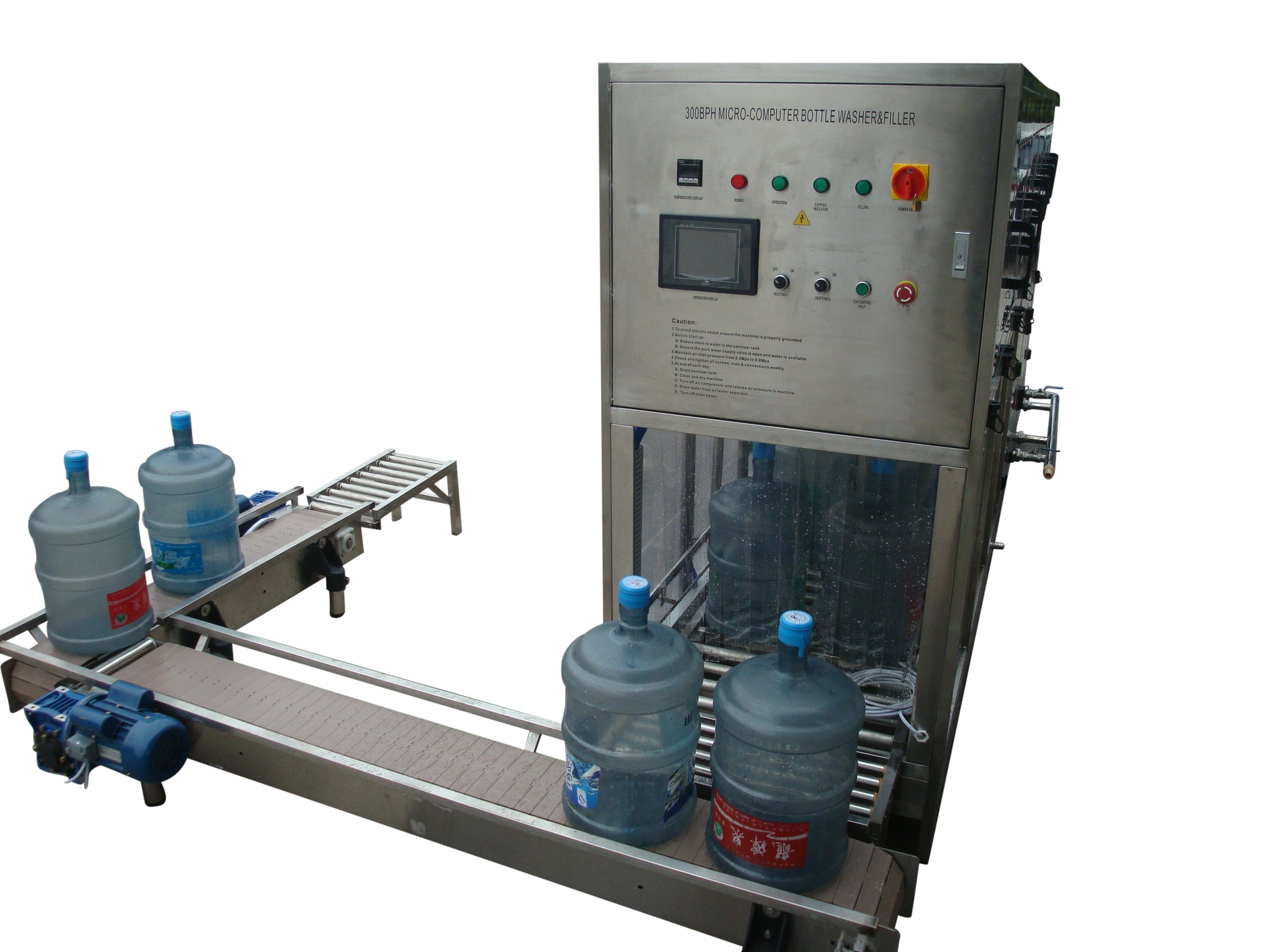

WFC300 with an optional exit conveyor system to return full bottles to the same area as loading empty ones.

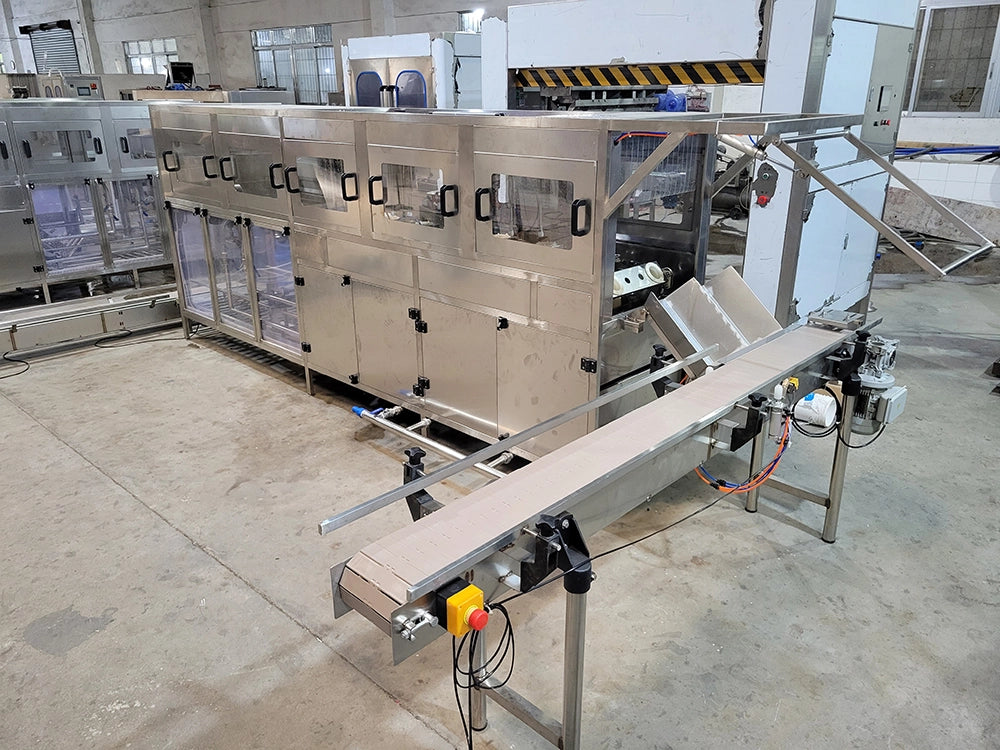

WFC300 with an optional exit conveyor system to return full bottles to the same area as loading empty ones.

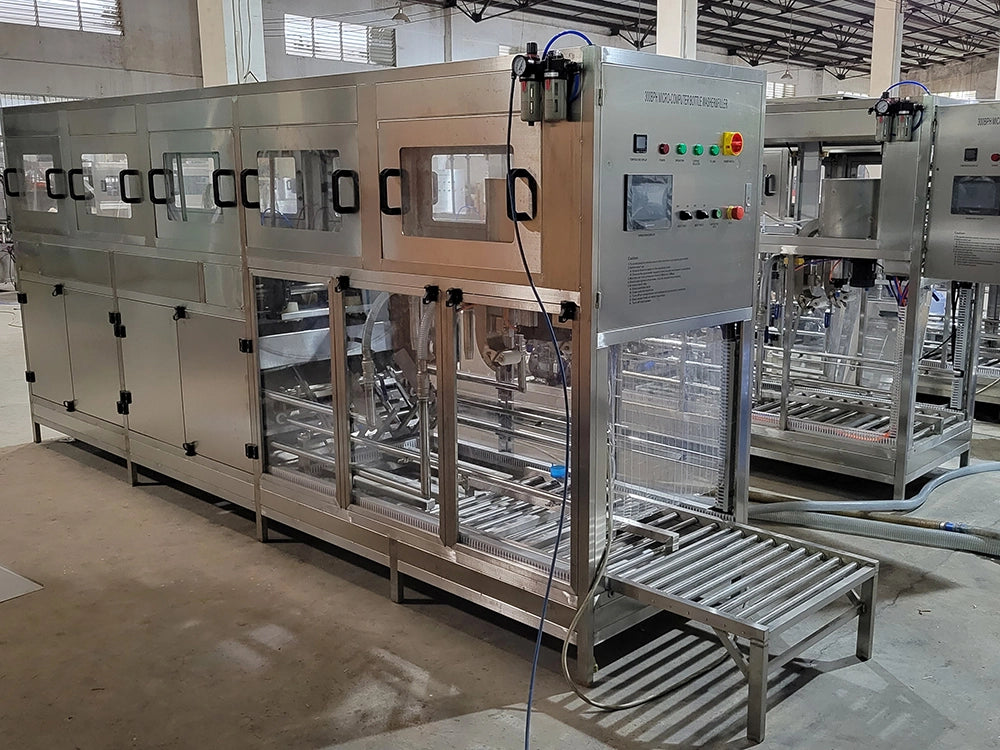

Factory view with multiple WFC300 18.9 liter bottling machines.
Dual soap and sanitizer injection pumps used on our WFC bottling machines.

WFC300 Automated 18.9 Liter Bottling System

$61,900.00
$61,900.00

CONTACT US FOR MORE INFORMATION ON THIS PRODUCT

The WFC300 is a real workhorse and can economically be set up with options like an auto loading system and motorized conveyors.. We have these in the field from the Bahamas to Yellowknife with total bottle counts in the multi millions. Like our 120's they are easy to run, very reliable, fairly simple to look after and with periodic parts replacement and a bit of care will almost run forever. Some of our earliest models are over 20 yrs old and still in operation. We stock parts and always help out with trouble shooting.

  • The WFC 300 will wash, sterilize, rinse, fill and cap 300 five gallon bottles per hour. It comes with a change over kit to do 11,6 Liter and will do the same amount on that size.
  • Operated by a touch screen control system with a visual interface of machine operations. You can see what part of the machine is operating at what time.
  • Consistent and reliable air driven chain advance system that makes bottle jams virtually unheard of.
  • Drop down curtaining system to separate various wash and rinse cycles eliminating  possibility of cross contamination between cycles.
  • Washes with hot water and detergent. Has it’s own integral 12KW water heating system with digital temperature display and thermostat for consistent 50C washing temperatures. Water heating elements are protected by low level shutdown switches to prevent damage from low water levels.
  • Washes and rinses inside and outside of bottles. Does a final rinse with the product water and does a product water rinse on the caps.
  • High quality stainless steel pumps with totally enclosed fan cooled motors.
  • Doesn’t require a pressurized water feed; it comes complete with filling pump; just connect it to your product water storage or ozone contact tank.
  • Handy emergency stop switches on each end for un-paralleled safety.
  • Sate of the art PLC control system.
  • Safety switches on all doors shut the system down if a door is opened.
  • Fully adjustable fill cycles from the touch screen with 0.1 sec adjustment increments.
  • Quick changeover from 5 gal to 3 gal bottles.
  • Capping system with cap holding bin with rotational feed turntable, chute with cap rinse, cap guidance head and air ram cap setting.
  • Curtained entrance and exit provides enclosed filling area.
  • 304 stainless steel construction for years of trouble free service.
  • Units sold in Canada carry CSA or equivalent certification, US units ULc, other certifications upon request.
  • Priced as a package including the bottling machine only, a Knight 200L digital soap and sanitizer injection system, a filtered air make up system, crating and shipping to most places in Canada. Remote locations may cost extra and some locations may cost less. Contact us for more information before ordering.
  • Conveyor and loading systems shown are optional.
  • Warranty is one year replacement parts with lifetime tech support.
  • We stock and supply parts out of our Edmonton warehouse.

Specifications

 Production Capacity 300 BPH
Bottle Size 18.9L, 11.6L
Electrical  240VAC, 1PH, 80 AMP, 208 upon request
Dimensions 151"L, 30"W, 70"H
Weight 1500 LBS
Compressed air supply required 7 SCFM @ 90 PSI.
Water supply required 1.5" flooded suction
